OIDC Discovery Endpoint - Configuring .well-known in ISAM/ISVA

OIDC Discovery Endpoint - Configuring .well-known in ISAM/ISVA

Anthony Galiamov
ISAM, WebSEAL

Contents​

Overview​

The .well-known endpoint returns OpenID Connect metadata about the authorization server. This information can be used by clients to programmatically configure their interactions with ISAM.

Reverse Proxy Junction Root Method​

The reverse proxy junction method involves creating an additional local junction that WebSEAL will use to access files we place on the root path. This method requires IBM Security Verify Access (ISAM/ISVA 10.0.X).

  1. To start off we need to SSH onto the ISAM appliance and create the local junction.

    note

    Creating the local junction can only be done via the CLI.

    ssh -l admin {{ applicance_host }}

    isam
    admin
    pdadmin> login
    Enter User ID: sec_master
    Enter Password: ********
    pdadmin sec_master>

    s t {{ object_space }}-webseald-{{ applicance_host }} create -t local /.well-known
    acl attach /WebSEAL/{{ object_space }}/.well-known unauth

  2. In the reverse proxy configuration file for the instance we created the local junction for, add the below configuration lines.
    This will return application/json instead of text/html as the content-type for any files with the /.well-known path.

    WebSEAL instance configuration file
    [rsp-header-names:/.well-known]
    content-type = application/json

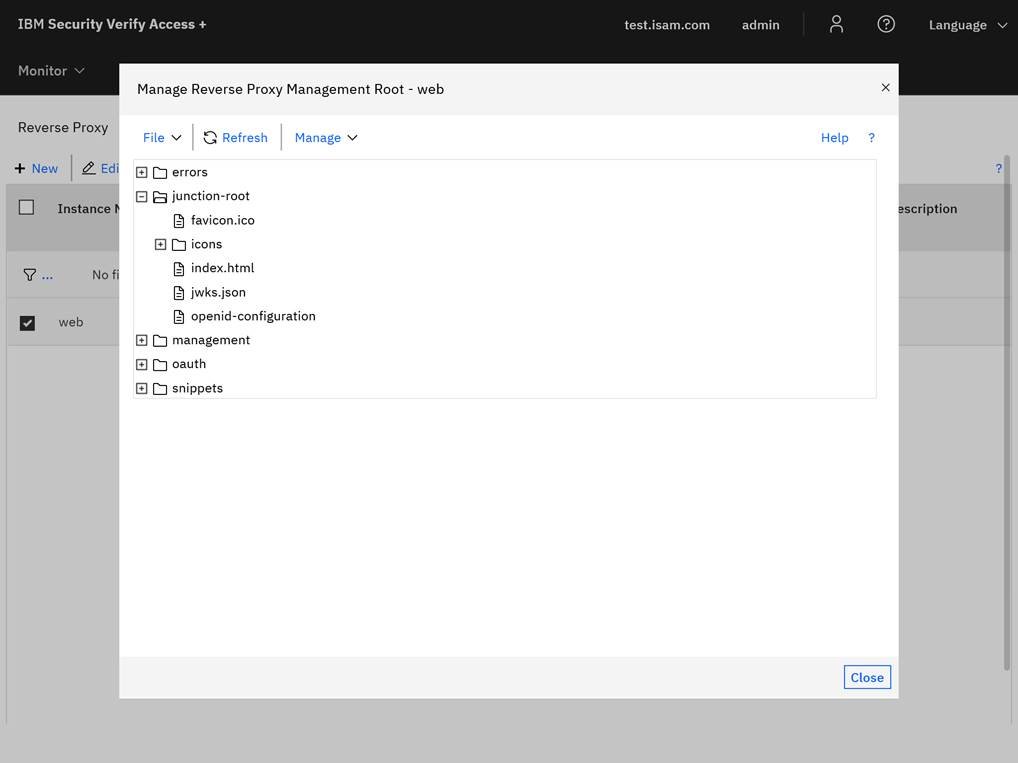

  3. Add the OpenId Discovery files to the junction-root of the WebSEAL instance. It's important to NOT specify the file type for the openid-configuration file as you would otherwise has to enter this for WebSEAL to match on the file.

HTTP Transformation Method​

/.well-known/openid-configuration Endpoint​

To configure the OpenID Connect (OIDC) discovery documents we'll need to add some XSL Transforms (XSLT) and make them accessible on /.well-known/openid-configuration which we'll do with some ACL's.

oidc-well-known.xslt
<?xml version="1.0" encoding="UTF-8" ?>
<xsl:stylesheet xmlns:xsl="http://www.w3.org/1999/XSL/Transform" version="1.0" xmlns:external="http://xsltfunctions.isam.ibm.com">

    <xsl:strip-space elements="*" />

    <xsl:template match="/">
        <HTTPRequestChange>
            <xsl:apply-templates />
        </HTTPRequestChange>
    </xsl:template>

    <!-- Define host variable -->
    <xsl:variable name="host">
        <xsl:value-of select="//HTTPRequest/Headers/Header[@name='host']" />
    </xsl:variable>

    <xsl:template match="//HTTPRequest/RequestLine/URI">
        <xsl:variable name="uri" select="node()" />
        <HTTPResponseChange action="replace">
            <Version>HTTP/1.1</Version>
            <StatusCode>200</StatusCode>
            <Header name="Content-Type" action="add">application/json</Header>
            <Header name="Access-Control-Allow-Origin" action="add">*</Header>
            <Body>{
                "issuer":"<xsl:value-of select="$host" />",
                "authorization_endpoint":"<xsl:value-of select="$host" />/sso/sps/oauth/oauth20/authorize",
                "token_endpoint":"<xsl:value-of select="$host" />/sso/sps/oauth/oauth20/token",
                "userinfo_endpoint":"<xsl:value-of select="$host" />/sso/sps/oauth/oauth20/userinfo",
                "jwks_uri":"<xsl:value-of select="$host" />/.well-known/jwks.json",
                "response_types_supported":["code"],
                "grant_types_supported":["authorization_code"],
                "subject_types_supported":["pairwise"],
                "id_token_signing_alg_values_supported":["RS256"],
                "scopes_supported":["openid","profile","email","phone"]
            }</Body>
        </HTTPResponseChange>
    </xsl:template>
</xsl:stylesheet>

/.well-known/jwks.json Endpoint​

This one's nice and simple. Just pass the request to a different endpoint and that's it.

oidc-well-known-jwks.xslt
<?xml version="1.0" encoding="UTF-8" ?>
<xsl:stylesheet version="1.0" xmlns:xsl="http://www.w3.org/1999/XSL/Transform">

    <xsl:strip-space elements="*" />

    <xsl:template match="/">
        <HTTPRequestChange>
            <xsl:apply-templates />
        </HTTPRequestChange>
    </xsl:template>

    <xsl:template match="//HTTPRequest/RequestLine/URI">
            <URI>/sso/sps/oauth/oauth/oauth20/jwks/APP-OIDC-RS256</URI>
    </xsl:template>

</xsl:stylesheet>

Attaching the Rules to the Requests - ACL​

In IBM Security Access Manager (ISAM), go to Secure Web Settings tab, select Reverse Proxy, select the Instance you want to attach the .well-known configuration to, and in the reverse proxy configuration file, paste the following transformation rule as shown below.

note

Just remember to have added your XSLT rule to HTTP Transformations and deployed your changes. You will need to have something to attach to your WebSEAL instance.

[http-transformations]
# The following files are currently available for this configuration entry:
oidc-well-known = oidc-well-known.xslt
oidc-well-known-jwks = oidc-well-known-jwks.xslt

[http-transformations:oidc-well-known]
request-match = request:GET /.well-known/openid-configuration*

[http-transformations:oidc-well-known-jwks]
request-match = request:GET /.well-known/jwks*
